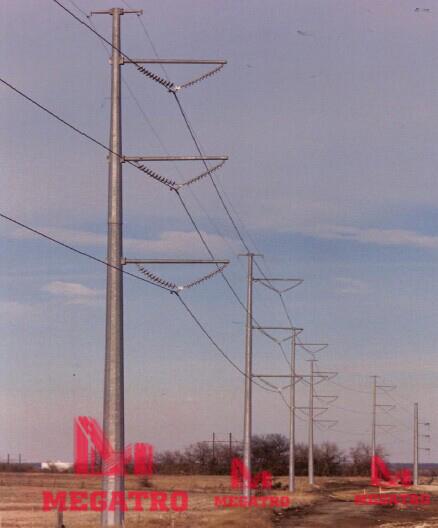

138KV single circuit tubular suspension structure

A single-circuit transmission line carries conductors for only one circuit. For a three-phase system, this implies that each tower supports three conductors. In single-circuit towers the conductors are lined up horizontally. Single-circuit towers hold the different conductors stacked atop one another, while in single-circuit towers the conductors are lined up horizontally.
These138KV single circuit tubular suspension structurescan be manufactured as one large piece, or as several small pieces which fit together. This type of pole often used in city power transmission grid, with little space, economic and lower cost. Now MEGATRO can produce distribution pole with some type as follow:
(1) Flange connection
(2) Slip joint
(2) Step type
(3) Stagger type
(4) Others

Pole foundation types have:

1. Direct embedment
2. Anchor bolt
3. Based plate
4. Vibratory steel caisson

MEGATRO can optimize design, to set a compact, narrow base, the pole design not only advanced but practical, with an emphasis on economic rationality to ensure safe and reliable operation. Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software. To meet the expectation, we produce shop drawings, components list and full production documentation, and even complete 3D models that facilitate the elimination of all design and drawings errors generated on the drawings. Another advantage is our 3D design and loading & design report, and can optimized the design and save cost for our clients.

MEGATRO is one of the few manufactures who assemble a face of138KV single circuit tubular suspension structure. This attention to quality may not be the cheapest process but it does insure every tower meets our high standards of quality. And it helps to reduce on-site construction cost due to mismatched assemblies. MEGATRO138KV single circuit tubular suspension structuresystems can accommodate a variety of cross-arm and other accessories. After fabrication138KV single circuit tubular suspension structuresare delivered to the galvanizing facility to be Hot DIP Galvanized. Towers are processed through the facility by Caustic Cleaning, Pickling, and then Fluxing. These strict procedures insure years of maintenance free towers. Even we take secondary finish for client again, which as duplex surface treatment.
Other information:
Availability size: Based on the customer's requirements.
Material: Chinese material or as per clients requirement
Package: Both parties discuss before delivery
Port of Loading: Qingdao Port
Lead Time: One month or based on the customer's needs
Minimum order: 1 ton
Fabrication standard: Chinese Standard or other standard which client accepted
Steel grades
POLE SHAFT: Chinese steel Q345B, which same to ASTM A572 GR50
Other webs, bracing and not stress plate and angle steel: Chinese Q235B, which same to ASTM A36
Plates: Chinese steel Q345B, which same to ASTM A572 GR50
Bolts: Chinese grade 6.8 and 8.8, which similar to ASTM A394
A) Dimension and tolerance for angle are according to GB/T1591-1994, similar to EN 10056-1/2
B) Hot DIP galvanization in accordance with GB/T 13912-2002, which similar to ASTM A 123
C) The welding will be performance in accordance with AWS D1.1 or CWB standard
If any special requirement, we can design and discuss with client.

                          COMPANY PROFILE

Qingdao Megatro Holding Company Limited is a Structure Steel, Power Transmission line steel tower, Telecom tower, related power materials, wind turbine, wind tower, power flange, fabrication& export& import company. MEGATRO headquarter are located in Qingdao city, Shandong province, CHINA.

MEGATRO fabrication plants are equipped with state of the art equipments and machineries manned by skilled and talented staff. MEGATRO adheres to the principles of “We provide goods every time, and we offer you good all the time! “, “Good Quality Management” and committed to “Heath, Safety and Environment” standard. These values had made our plants certified ISO 9001:2008; ISO 14001:2004 and OHSAS18000:2007 company.

To meet our clients requirements, we also design every type of steel towers & poles as per American Society of Mechanical Engineers(ASME) , American National Standards Institute（ANSI） and clients standard.   Major design engineers come from America, India, and Egypt in meeting the quality requirements for standard of power transmission steel tower, telecom tower and standard fro steel building structures. We have top rank design engineer from Venezuela, USA and India, they can use PLS, TOWER software to design every type of steel structure. Moreover, our Chinese engineer can design every types of tower by software DAO POWER and others.

MEGATRO capabilities combined with the diversified and rich experience of our design engineers distinguish it as a professional manufacturer & trader in the power transmission line steel tower, telecom tower, wind turbine, wind tower, power flange, and structural steel. We are delighted to be a one-stop steel structure solutions with power material and related products provider and aspire to build on these relationships with our clients promising them a future as solid as steel.

Licensed Products:

Design, fabrication, supply and Erection of Steel structures, Telecom Towers, Overhead Electrical Transmission Lind Towers, Power Substation, Power Materials, Wind tower, Wind Turbine, Galvanizing; provide Wind Power Flange, Cables, power fitting &hardware, steel pipe, Insulator , Lam post and related products as per client requirements; Import and Export Steel ore

Object:

We don't make a lot of products you know.
We only make a lot of products you know better.

Mission: COMMITMENT TO EXCELLENT!

Vision:

We are committed to a philosophy of integrity and quality in everything we do.

We support customer focus, continuous improvement and pursuit of excellence in our products, service and people.

We will strive to have a completely satisfied customer at the end of each transaction.
